背景
管理后台需要对相关文章进行管理, 涉及到富文本编辑器.
在此采用基于 百度 ueditor 编辑器(已停止维护) 二开的 neditor 编辑器(美观, 大气, 简洁). 并为其集成 135 编辑器. 以达到可以快捷使用 135 编辑器模板功能, 并且不失美观的特性.
下方是关于集成的步骤记录.
实践
// 135 编辑器配置
// 1. 下载 neditor 编辑器, 解压至项目访问目录
// 2. 下载 135 编辑器, 135EditorDialogPage.html, 保存至 neditor/dialogs/135editor/ 目录
// 3. 下载 135 编辑器, 135editor.js, 保存至 neditor/dialogs/135editor/ 目录
// 4. 编辑 135EditorDialogPage.html 文件内容, 修改 internal.js 引入为正确地址, 如: src="../internal.js"
// 5. 编辑 135editor.js, 内容修改为下方 diff 代码, 使用 dialog 编辑, 关闭 window.open 编辑. 避免在移动端打开 135 编辑器页面后, 无法返回表单页面.
// neditor 配置修改
// 1. 修改 neditor.config.js, 关闭 inputFilter, 避免 135 编辑的文章, 样式被 xss 过滤
// 2. 修改 neditor.config.js, 关闭 outputXssFilter, 避免 135 编辑无法正确获取将要编辑文章, 样式被 xss 过滤
// 3. 保存 edtior.blade.php 到 resources/view/editor.blade.php
// dcat-admin 配置 neditor 编辑器
// dcat-admin 配置 neditor 编辑器
// 1. 保存 NEditor.php 到 app/Admin/Extensions/Form 目录下
// 2. 配置 NEditor::Js 常量, 引入正确的 js 地址
// 3. 配置 NEditor::serverUrl 属性, 修改文件上传地址
// 4. 配置 NEditor::neditorHomeUrl 属性, 修改 neditor 访问地址
// 5. 配置 NEditor::neditorConfigOptions 属性, 修改, 这里可以配置编辑器默认的工具栏
// 6. 在 app/Admin/bootstrap.php 增加 Form::extend('neditor', \App\Admin\Extensions\Form\NEditor::class); 配置, 定义 @editor 资源便恶魔, 全局引入资源
Admin::asset()->alias('@neditor', [
// 为了方便演示效果,这里直接加载CDN链接,实际开发中可以下载到服务器加载
'js' => \App\AdminTenant\Extensions\Form\NEditor::JS,
'css' => \App\AdminTenant\Extensions\Form\NEditor::CSS,
]);
\Dcat\Admin\Admin::requireAssets('@neditor');
Form::extend('neditor', \App\AdminTenant\Extensions\Form\NEditor::class);
diff --color -u 135editorold.js 135editor.js
diff --color -u 135editorold.js 135editor.js
--- 135editorold.js 2022-01-06 23:14:21.000000000 +0800
+++ 135editor.js 2022-05-03 22:24:19.944000000 +0800
@@ -1,4 +1,4 @@
-UE.registerUI('135editor',function(editor,uiName){
+UE.registerUI('135editor', function (editor, uiName) {
// var dialog = new UE.ui.Dialog({
// iframeUrl: editor.options.UEDITOR_HOME_URL+'dialogs/135editor/135EditorDialogPage.html',
// cssRules:"width:"+ parseInt(document.body.clientWidth*0.9) +"px;height:"+(window.innerHeight -50)+"px;",
@@ -9,36 +9,45 @@
// dialog.fullscreen = false;
// dialog.draggable = false;
- var editor135;
- function onContentFrom135(event) {
- if (typeof event.data !== 'string') {
- if(event.data.ready) {
- editor135.postMessage(editor.getContent(),'*');
- }
- return;
- };
-
- if(event.data.indexOf('<') !== 0) return;
-
- editor.setContent(event.data);
- editor.fireEvent("catchRemoteImage");
- window.removeEventListener('message', onContentFrom135);
- }
+ // var editor135;
+
+ // function onContentFrom135(event) {
+ // if (typeof event.data !== 'string') {
+ // if (event.data.ready) {
+ // editor135.postMessage(editor.getContent(), '*');
+ // }
+ // return;
+ // };
+
+ // if (event.data.indexOf('<') !== 0) return;
+
+ // editor.setContent(event.data);
+ // editor.fireEvent("catchRemoteImage");
+ // window.removeEventListener('message', onContentFrom135);
+ // }
var btn = new UE.ui.Button({
- name:'btn-dialog-' + uiName,
- className:'edui-for-135editor',
- title:'135编辑器',
- onclick:function () {
- // dialog.render();
- // dialog.open();
+ name: 'btn-dialog-' + uiName,
+ className: 'edui-for-135editor',
+ title: '135编辑器',
+ onclick: function () {
+ var dialog = new UE.ui.Dialog({
+ iframeUrl: editor.options.UEDITOR_HOME_URL+'dialogs/135editor/135EditorDialogPage.html',
+ cssRules:"width:"+ parseInt(document.body.clientWidth*0.9) +"px;height:"+(window.innerHeight -50)+"px;",
+ editor:editor,
+ name:uiName,
+ title:"135编辑器"
+ });
+ dialog.render();
+ dialog.open();
// 由于登录存在跨域问题,请使用如下方式调用135编辑器
- editor135 = window.open('https://www.135editor.com/simple_editor.html?callback=true&appkey=')
-
- window.removeEventListener('message', onContentFrom135);
- window.addEventListener('message', onContentFrom135, false);
+ // editor135 = window.open(
+ // 'https://www.135editor.com/simple_editor.html?callback=true&appkey=')
+
+ // window.removeEventListener('message', onContentFrom135);
+ // window.addEventListener('message', onContentFrom135, false);
}
});
return btn;
-},undefined);
\ No newline at end of file
+}, undefined);
\ No newline at end of file
135editor.js
UE.registerUI('135editor', function (editor, uiName) {
// var dialog = new UE.ui.Dialog({
// iframeUrl: editor.options.UEDITOR_HOME_URL+'dialogs/135editor/135EditorDialogPage.html',
// cssRules:"width:"+ parseInt(document.body.clientWidth*0.9) +"px;height:"+(window.innerHeight -50)+"px;",
// editor:editor,
// name:uiName,
// title:"135编辑器"
// });
// dialog.fullscreen = false;
// dialog.draggable = false;
// var editor135;
// function onContentFrom135(event) {
// if (typeof event.data !== 'string') {
// if (event.data.ready) {
// editor135.postMessage(editor.getContent(), '*');
// }
// return;
// };
// if (event.data.indexOf('<') !== 0) return;
// editor.setContent(event.data);
// editor.fireEvent("catchRemoteImage");
// window.removeEventListener('message', onContentFrom135);
// }
var btn = new UE.ui.Button({
name: 'btn-dialog-' + uiName,
className: 'edui-for-135editor',
title: '135编辑器',
onclick: function () {
var dialog = new UE.ui.Dialog({
iframeUrl: editor.options.UEDITOR_HOME_URL+'dialogs/135editor/135EditorDialogPage.html',
cssRules:"width:"+ parseInt(document.body.clientWidth*0.9) +"px;height:"+(window.innerHeight -50)+"px;",
editor:editor,
name:uiName,
title:"135编辑器"
});
dialog.render();
dialog.open();
// 由于登录存在跨域问题,请使用如下方式调用135编辑器
// editor135 = window.open(
// 'https://www.135editor.com/simple_editor.html?callback=true&appkey=')
// window.removeEventListener('message', onContentFrom135);
// window.addEventListener('message', onContentFrom135, false);
}
});
return btn;
}, undefined);
neditor.blade.php
<div class="{{$viewClass['form-group']}}">
<label class="{{$viewClass['label']}} control-label">{{$label}}</label>
<div class="{{$viewClass['field']}}">
@include('admin::form.error')
<textarea id="{{ $editor_id }}" name="{{ $name}}" placeholder="{{ $placeholder }}" {!! $attributes !!} >{!! $value !!}</textarea>
@include('admin::form.help-block')
</div>
</div>
<script init="{!! $selector !!}">
var options = {{ Js::from($config) }};
var editor = UE.getEditor('{{ $editor_id }}', options);
</script>
<style>
.edui-button.edui-for-135editor .edui-button-wrap .edui-button-body .edui-icon{
background-image: url("//static.135editor.com/img/icons/editor-135-icon.png") !important;
background-size: 85%;
background-position: center;
background-repeat: no-repeat;
}
</style>
NEditor.php
<?php
namespace App\AdminTenant\Extensions\Form;
use Illuminate\Support\Arr;
class NEditor extends \Dcat\Admin\Form\Field
{
const JS = [
'/neditor/neditor.config.js',
'/neditor/neditor.all.min.js',
'/neditor/neditor.service.js',
'/neditor/i18n/zh-cn/zh-cn.js',
'/neditor/third-party/browser-md5-file.min.js',
'/neditor/dialogs/135editor/135editor.js',
];
const CSS = [
//
];
protected static $js = NEditor::JS;
protected static $css = NEditor::CSS;
protected $view = 'neditor';
public static $serverUrl = '/dashboard/files/upload';
public static $neditorHomeUrl = '/tenancy/assets/neditor/';
public static $neditorConfigOptions = <<<OPTIONS
{
"UEDITOR_HOME_URL": "",
"serverUrl": "",
"allowDivTransToP": false,
"inputXssFilter": false,
"outputXssFilter": false,
"initialFrameHeight": 320,
"toolbars": [
[
"135editor",
"fullscreen",
"source",
"|",
"undo",
"redo",
"|",
"bold",
"italic",
"underline",
"fontborder",
"strikethrough",
"rowspacingtop",
"rowspacingbottom",
"lineheight",
"removeformat",
"formatmatch",
"autotypeset",
"blockquote",
"pasteplain",
"|",
"forecolor",
"backcolor",
"insertorderedlist",
"insertunorderedlist",
"selectall",
"cleardoc",
"|",
"superscript",
"subscript"
]
]
}
OPTIONS;
protected $config = [];
public function setNeditorhomeUrl()
{
$this->config('UEDITOR_HOME_URL', static::$neditorHomeUrl);
return $this;
}
public function setServerUrl()
{
$this->config('serverUrl', static::$serverUrl);
return $this;
}
protected function config($key = '', $value = '')
{
if (!$this->config) {
$this->config = json_decode(static::$neditorConfigOptions, true) ?? [];
}
if ($key) {
$this->config = Arr::set($this->config, $key, $value);
}
return $this->config;
}
public function render()
{
$config = $this->setNeditorhomeUrl()
->setServerUrl()
->config();
$this->addVariables([
'editor_id' => 'neditor_'.uniqid(),
'config' => $config,
]);
return parent::render();
}
}

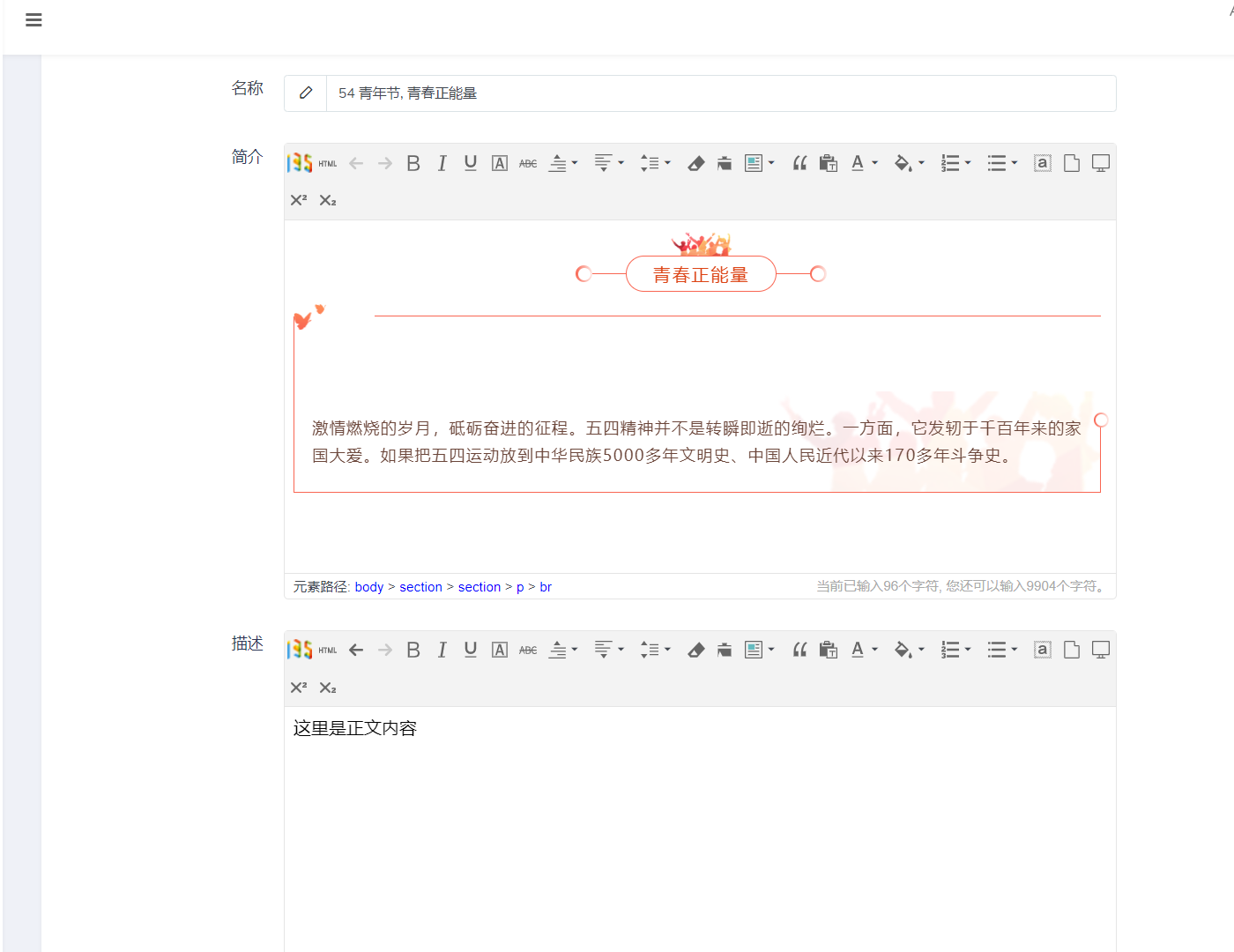

截图
